Precise - A Modern, Minimalistic Shop Theme

WordPress Version

Thank you for purchasing our theme. If you have any questions that are beyond the scope of this documentation, please feel free create topic on my help desk. Thanks so much!

Files Included

  • The theme zip file precise.zip
  • Child theme for easier customize in precise-child.zip
  • Document in Documentation

Struct look like:

dashboard

System Requires

To use Precise, you must be running WordPress 4.4 or higher, PHP5.6 or higher, and MySQL 5 or higher. We have tested it with Mac, Windows and Linux. Below is a list of items you should ensure your host can comply with.

PHP Extension Require

XMLReader

Requirement PHP Configuration Limits

Many issues that you may run into such as: white screen, demo content fails when importing, empty page content and other similar issues are all related to low PHP configuration limits. The solution is to increase the PHP limits. You can do this on your own, or contact your web host and ask them to increase those limits to a minimum as follows:

  • max_input_vars = 5000
  • memory_limit = 128M
  • max_execution_time = 300
  • max_input_time = 300
  • upload_max_filesize = 64M
  • post_max_size = 64M

Download Precise Theme

Get the Precise Theme installation package from your account(after login on Themeforest.net) at downloads page and save it to your computer.

dashboard

Install Precise Theme

Installation via Wordpress

Step 1 - Login to your Wordpress Dashboard

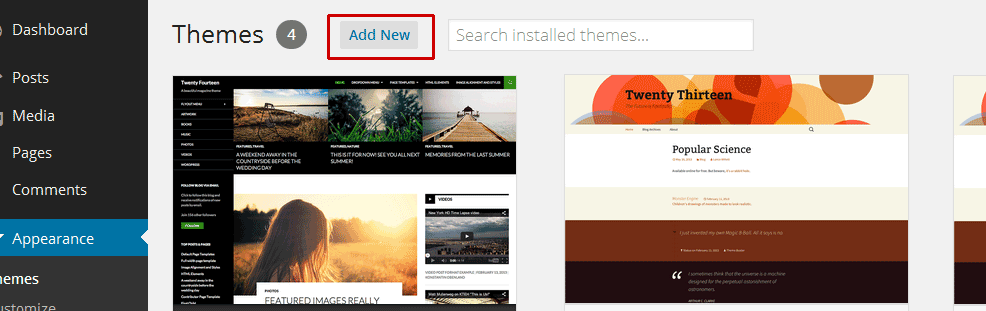

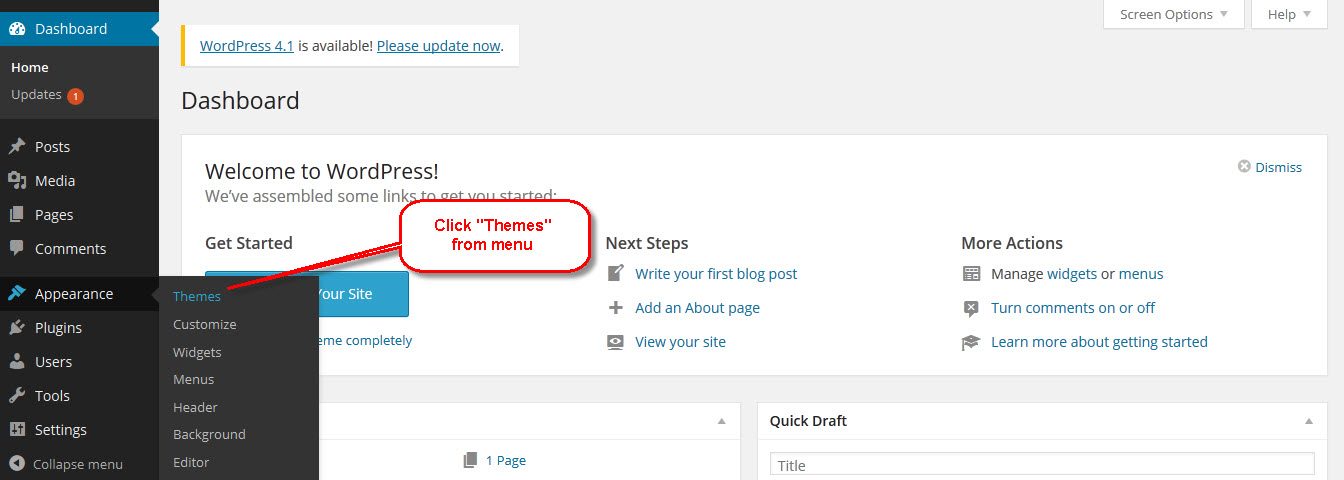

Step 2 - Go to Appearance > Themes. Click the Add New button or Add new theme link. (check screenshot below)

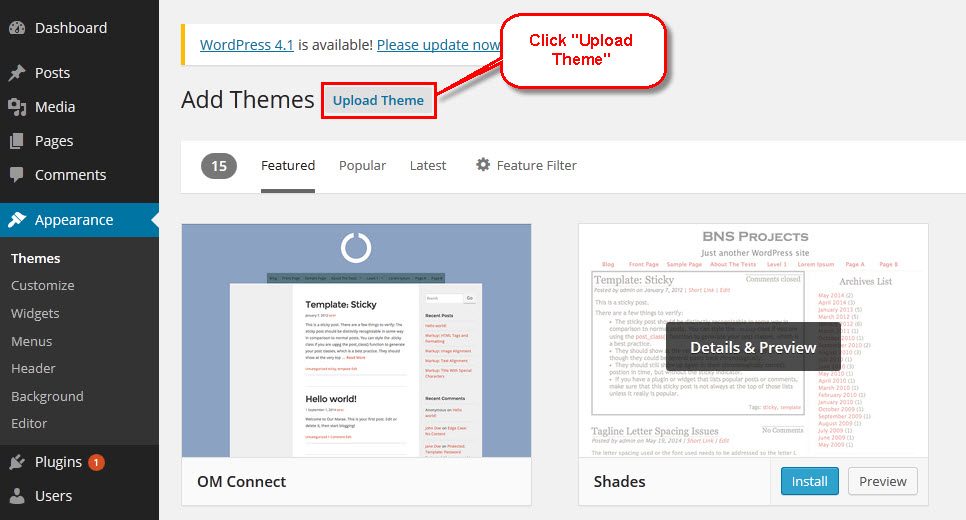

Step 3 - Click on the Upload Theme button. Locate "precise.zip" and click Install Now.

Step 4 - Click on the Activate button to activate Precise. Congratulations, you have now activated Precise! You can now proceed with Precise's Plugin Installation.

dashboard

install

install

install

install

Installation via FTP

Step 1 - Log into your Hosting server using an FTP client (like FileZilla or WinSCP).

Step 2 - Locate "precise.zip" that you found in your ThemeForest Package and unzip it somewhere on your hard drive. Once it is unzipped it will look like a folder named Precise with all theme files in it.

Step 3 - Locate your Wordpress installation and upload the theme directory Precise (you unzipped in the previous step) into ../wp-content/themes/ in your Wordpress installation.

Step 4 - Click on the Activate button to activate Precise. Congratulations, you have now activated Precise! You can now proceed with Precise's Plugin Installation.

Install Precise Required Plugins

All plugins required have been zipped/already into your download package, so you only need to do is click on the "Begin installing plugins".

You should be navigated to the Install Required Plugin page, which shows a plugin list similar to this(list plugins on images below only an example, not for Precise):

install plugins

Next, Click on the checkbox beside "Plugin" label to select all plugins in the list.

install check list

Then choose "Install" from the drop-down list at the top and then click "Apply".

install action

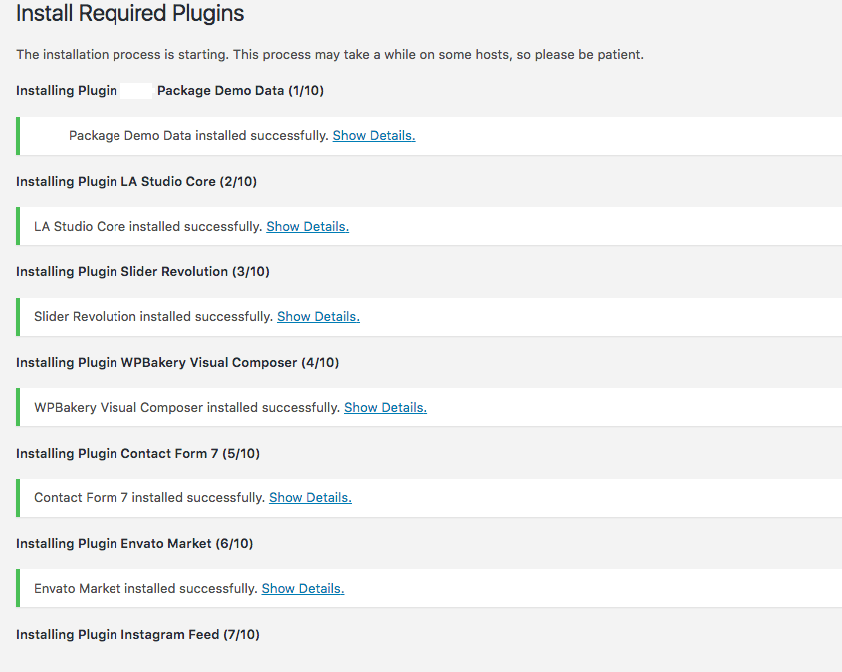

The installing process status will be shown in your browser. It may takes a few minutes, so please be patient. After sucessfull, your screen like that

install plugins

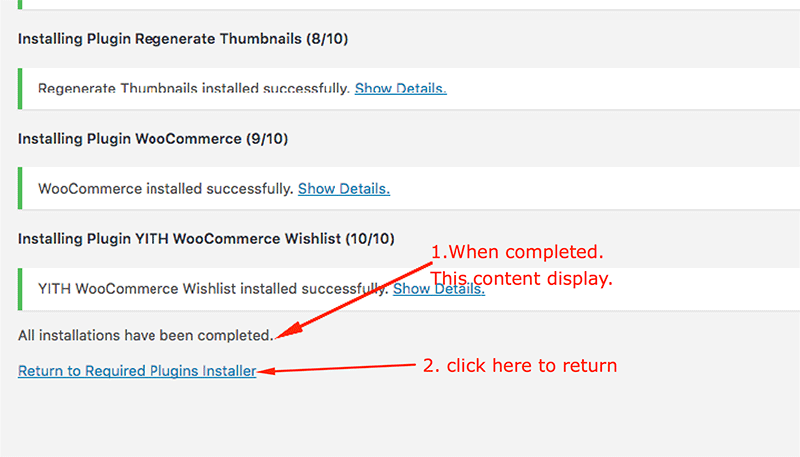

When the notice "All installations have been completed" appears, click on the "Return to Required Plugins Installer" link to turn back to the plugin list.

install plugins

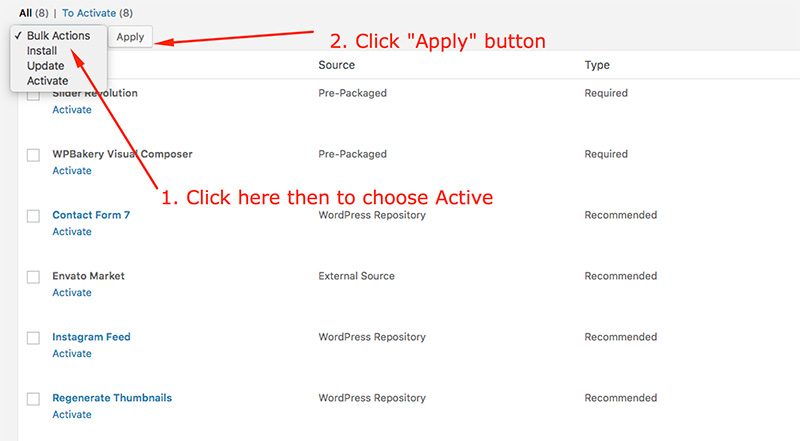

Next, click on the box beside the Plugin label again to select all plugins and choose Activate this time as image below.

active all required plugins

How do I update my ThemeForest theme?

There are a couple of different ways to update our WordPress themes to the latest version:

Method 1: Install the WordPress Envato Market plugin

Once installed, activated, and setup, the Envato Market plugin will display a notice in your WordPress dashboard when an update is available. To setup:

  1. Download the Envato Market plugin and install it through the WordPress Dashboard at: Appearance > Widgets
  2. Activate the plugin.
  3. Navigate to the Envato Market menu, follow the instructions to generate a Global OAuth Personal Token, and enter the Token in your WordPress Dashboard:

Method 2: Manually Install the Update

To manually install a new version of the theme:
  1. Backup the current version of the theme.
  2. Delete the old version and reinstall the latest version. You will not be able to install the new version while the old version is still installed.
NOTICE: If direct customizations have been made to the parent theme, they will be overwritten when the theme is updated. The recommended way to apply theme file customizations is to use a  child theme

Demo Importer

With Precise, you can build a functioning website just by clicking a button and install our demo data or click 4.2.1 Create A New Page to step by step. Your Precise installation will be set up with what we have on our demo website, and you can use it as a template to develop your own website.

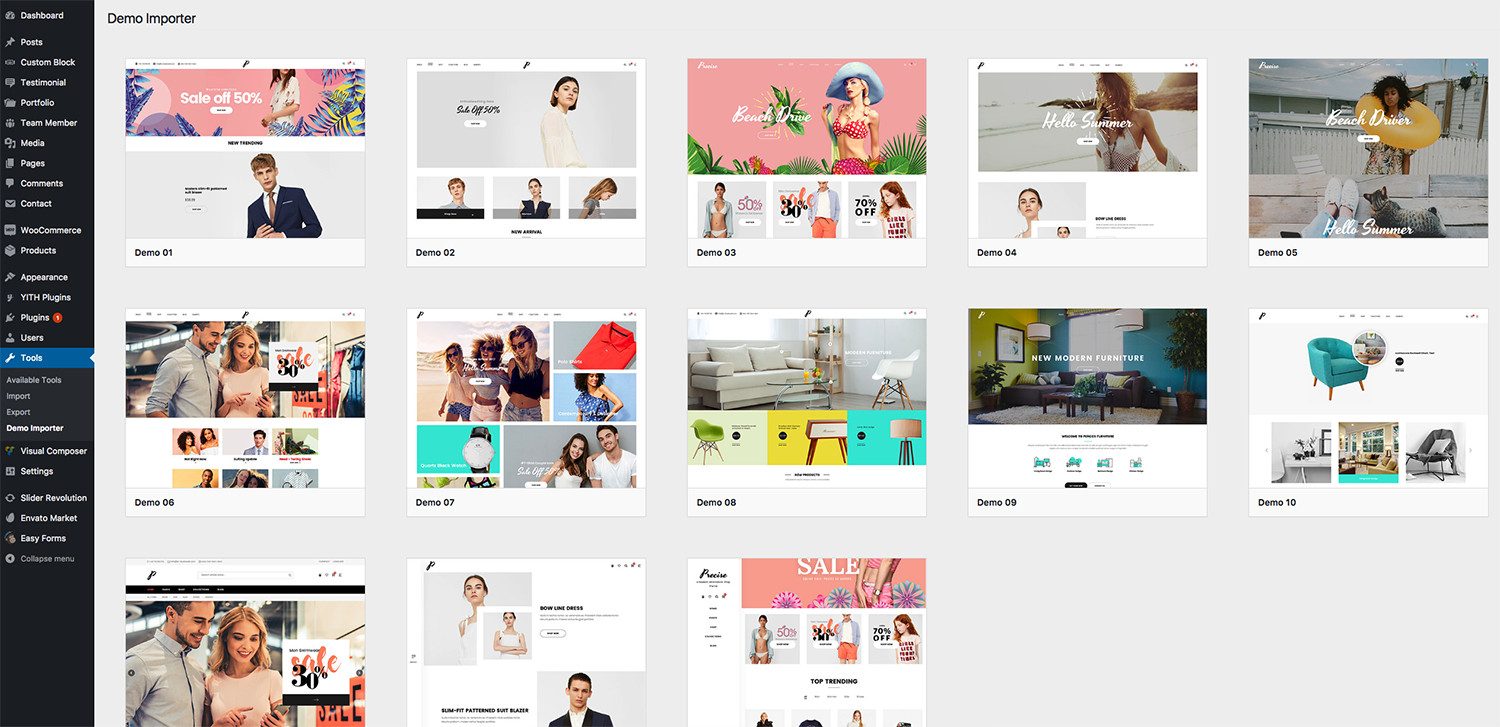

Go to Tools > Demo Importer

Import Demo Content in One Click

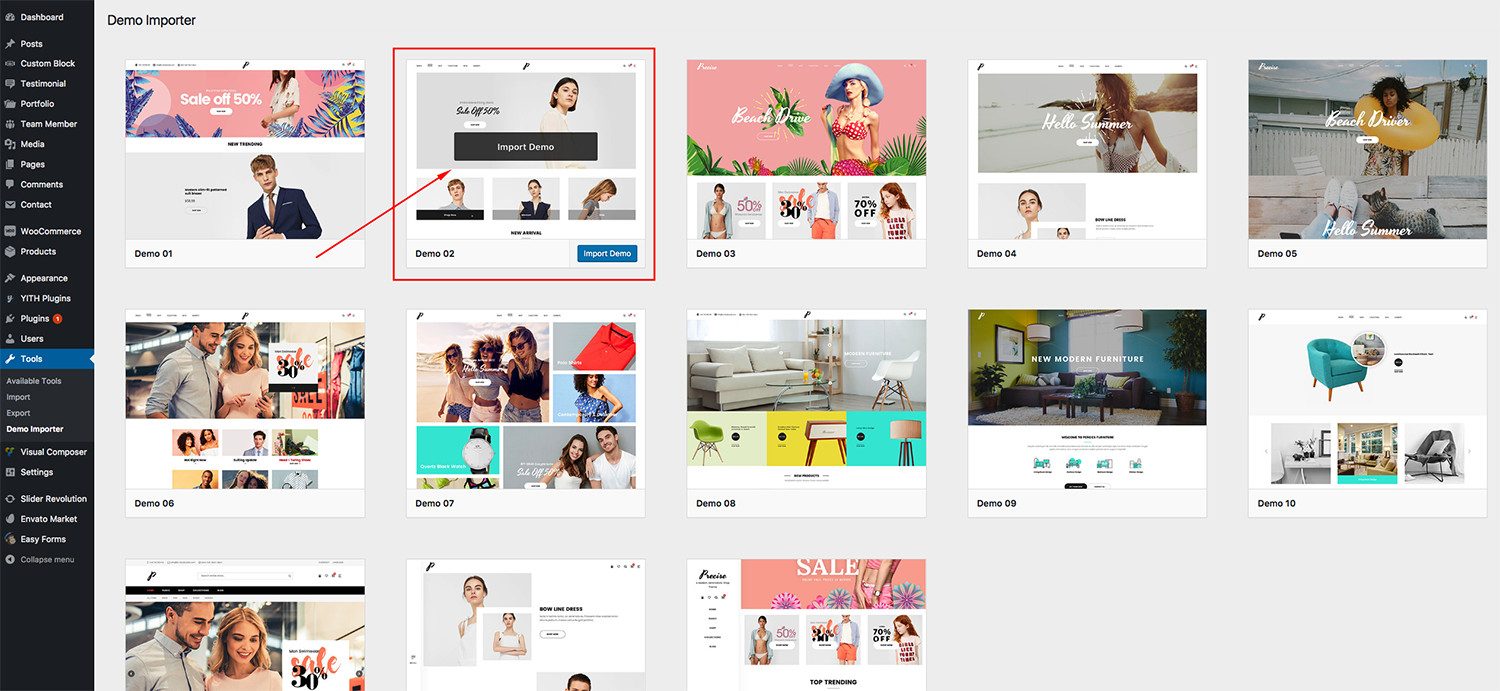

Then select the demo which you want import and click to button "Import Demo"

Import Demo Content in One Click02

The progressing would be displayed on import status bars so you will know when it is finished and your data is ready.

waitting

This process will take about some minutes

sucess

DONE. Now, you can visit your website to view demo.

Creat a new page

You can create any number of pages with content. Our theme includes several page templates to choose from, and you will need to choose the page template that suits your needs. All of this is done in the pages section of your WordPress admin.

If you DID NOT One Click Install Demo Data, you will need to MANUALLY CREATE your Home and other pages. Here’s how to build it:

Step 1 – Navigate to Pages in your admin sidebar and click Add New option.

Step 2 – Input a new name for your page.

Step 3 – Set your Parent page. It’s usually set to No Parent.

Step 4 – Set your page template from the Template dropdown list.

Step 5 – Content for your page goes in the editing field, use the Visual or Text editor.

Next, you can publish this page and set it as your frontpage(5.2.9. Settings a static page as Home) in the Wordpress Settings panel.

Import Demo Content

If you are new to WordPress and have problems with setting up the theme you might want to import the demo content file that comes with the theme. The following actions will import some dummy posts and pages from the live preview:

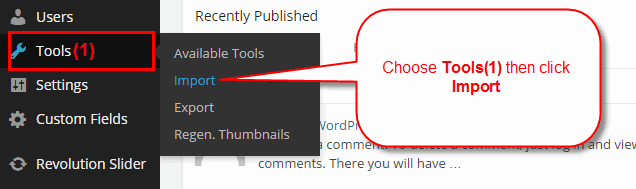

  • Go to menu Tools > Import
  • Select WordPress from the list
  • If you haven't installed the WordPress import plugin, a popup window will appears and ask you to install it. Just click Install Now. When the installation progress is completed, click Activate Plugin & Run Importer. If you have installed this plugin, skip to next step.

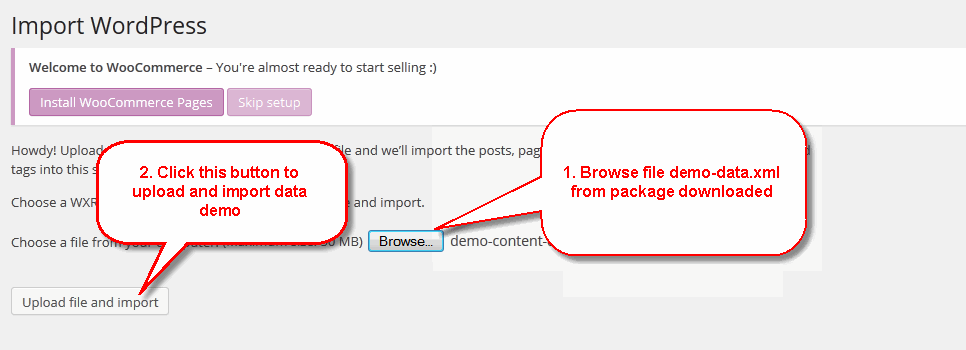

  • Click Browse and select data-sample.xml file from the download package
    (Example: cleaning demo on path: Precise_Theme/Assets/Dummy Data/Content/data-sample.xml, so the same for others)
  • Click Upload file and import
  • When you are asked to import author, you can create new author or import to existing author. You also should check the Download checkbox and import file attachments.

demo

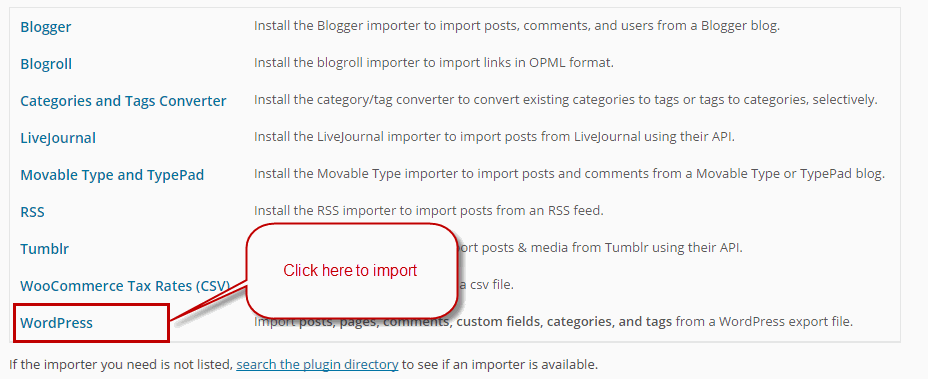

Select WordPress from the list

demo

Continue with steps in image

demo

select file

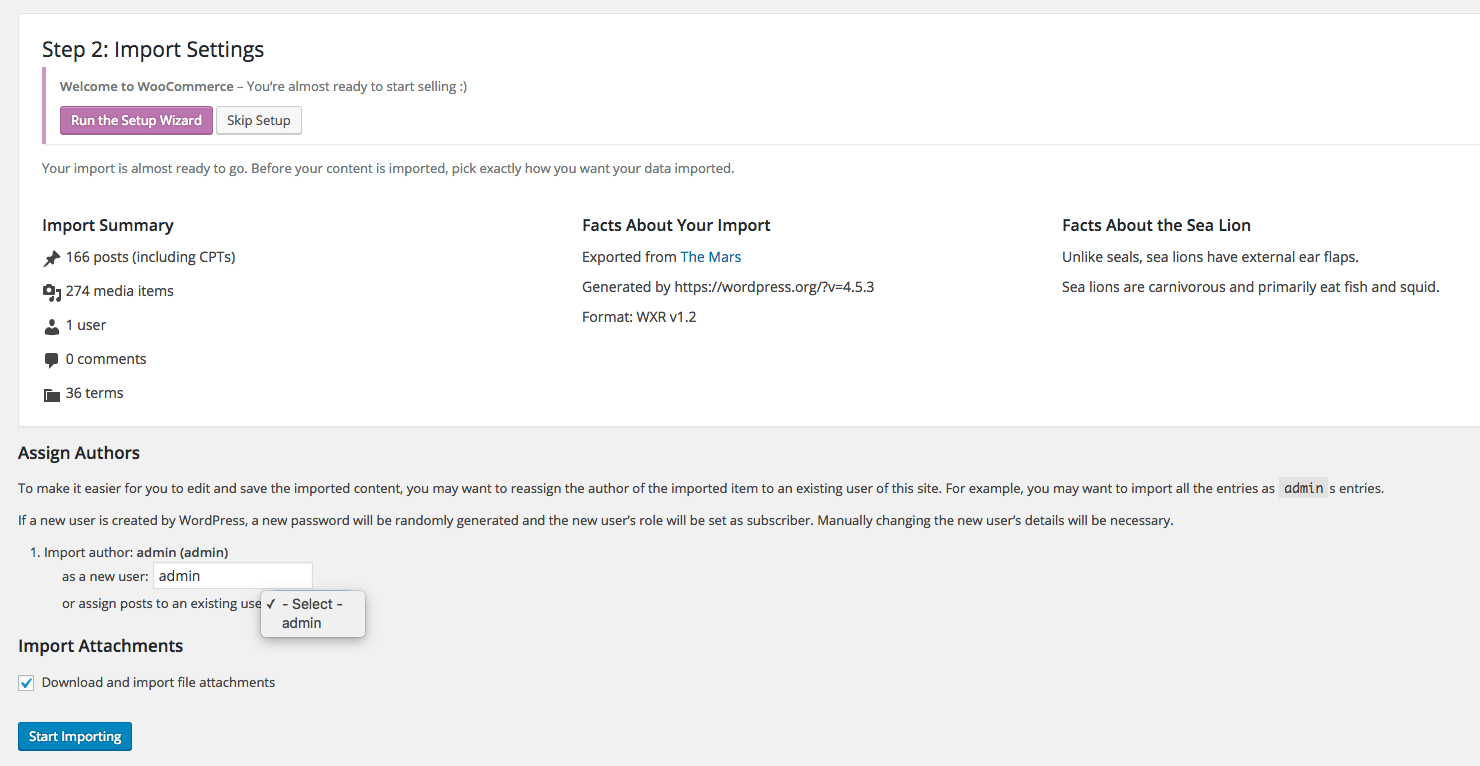

Display asked to import author, selected and continue

demo

After completing all above steps, you must re-check somethings compare wih my demo, because have some settings/data maybe not include.

If you don't want to use the demo content pack, you can read the instructions on how to work with our theme built-in page to make your own pages.

Contact Form

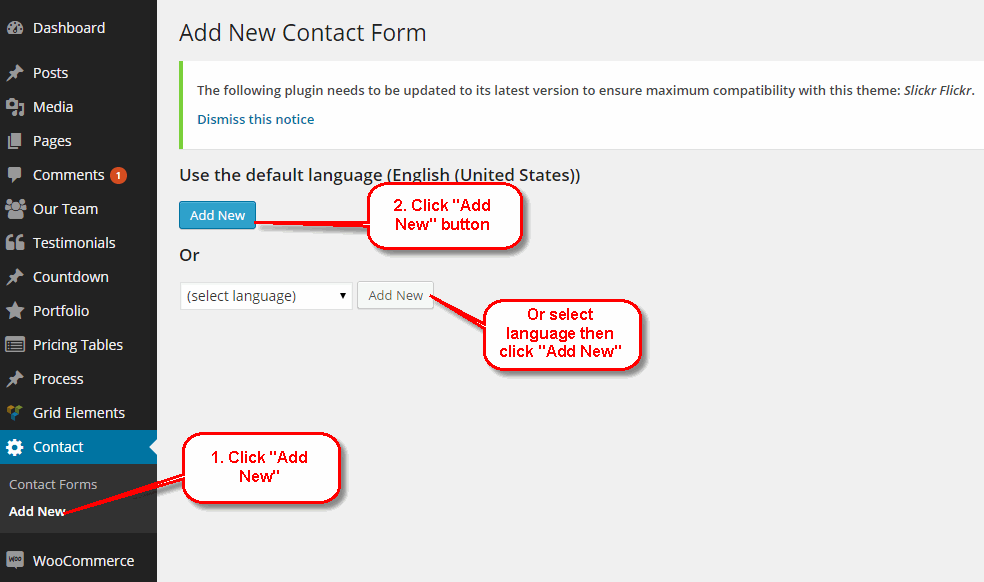

You can do step by step as image below to build contact form

Add New Contact Form

You can visit Contact Form 7 Plugin to further details.

Or copy and paste content below to Form field(see image above)

Value Content "Contact Form 01"

Value Content "Contact Form 02"

Value Content "Contact Form 03"

General Options

You can adjust WordPress settings as follow:

Step 1 – You can set Site Title, Tagline in Settings > General



Step 2 – You can set Blog pages show at most in Settings > Reading



Step 3 – You can select Front Page displays in Settings > Reading



Step 4 – You can set Discussion settings in Settings > Discussion



Step 5 – You can change Image sizes in Settings > Media

We used the following sizes on our demo sites:
Thumbnail size: 370 x 250
Medium size: 570 x 380
Large size: 770 x 390

Step 6 – You should ensure that a non-default permalink setting is selected, e.g. Month and name in Settings > Permalinks

Them Customizer/Precise Options



Global Layout

"Global Layout" tab is divided into a few sections. Asides from the Install Demo Data section mentioned above, there are a few important sections for you to customize your layout.

1. General

Attribute Description
Layout Select main content and sidebar alignment. Choose between 1, 2 or 3 column layout.
Enable Main FullWidth layout website full screen
Enable Google Rich Snippets Show Google Rich Snippets In the Breadcrumbs
Show Button "Back To Top" Turn on this option if you want to enable "back to top" button on your site
Enable Page Loader Icon Turn on Overlay & Icon loader when visit page

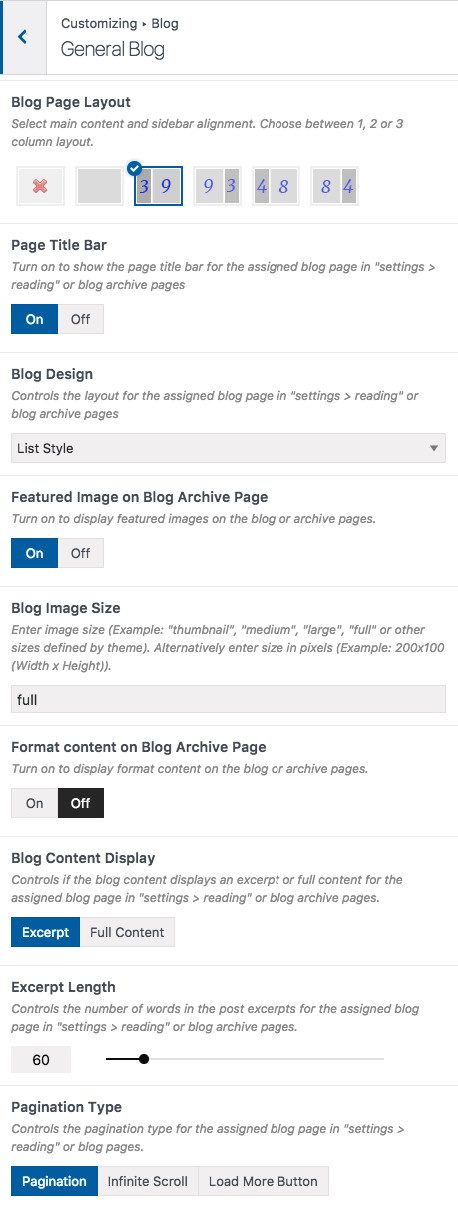

Blog Page

Blog page

Attribute Description
Layout Select main content and sidebar alignment. Choose between 1, 2 or 3 column layout.
Blog Type Post item will be display (Ex: Grid, List ..)
Post columns Number post will be displaying in per row
Enable Masonry Mode If value is "ON" the masonry mode is enable
Excerpt Length Type Number ( Number characters of excerpt will be displayed
Post Image Size Enter image size (Example: "thumbnail", "medium", "large", "full" or other sizes defined by theme). Alternatively enter size in pixels (Example: 200x100 (Width x Height)).
Show Continue Reading If value is "ON" the link "Continue reading" will be display
Enable Pagination ajax loader
Enable Infinite Scroll

Single post

In this section you can control all single blog settings of your site

Attribute Description
Custom Page Layout Select main content and sidebar alignment. Choose between 1, 2 or 3 column layout.
Show Breadcrumbs Turn Off this option if you want to hide breadcrumbs info area on single blog
Show Posts Navigation Turn Off this option if you want to hide navigation on single blog
Show Author Info Turn Off this option if you want to hide author info area on single blog
Show social share link Turn Off this option if you want to hide social share link area on single blog
Show comment Turn Off this option if you want to hide comment form area on single blog
Related Post Turn Off this option if you want to hide related post area on single blog
Related Post By
Related Post Columns Number columns rel pos display

Typography

In this section you can control all typography settings of your site

Attribute Description
Body Font Inlcuded: Font Family(name of font), Font Size, Font Weight.
Primary Font Inlcuded: Font Family(name of font)
Secondary Font Inlcuded: Font Family(name of font)

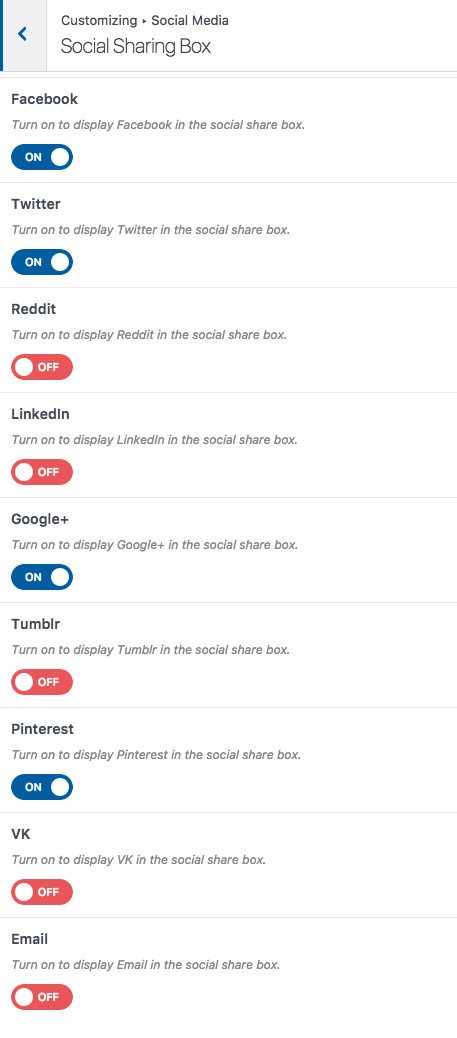

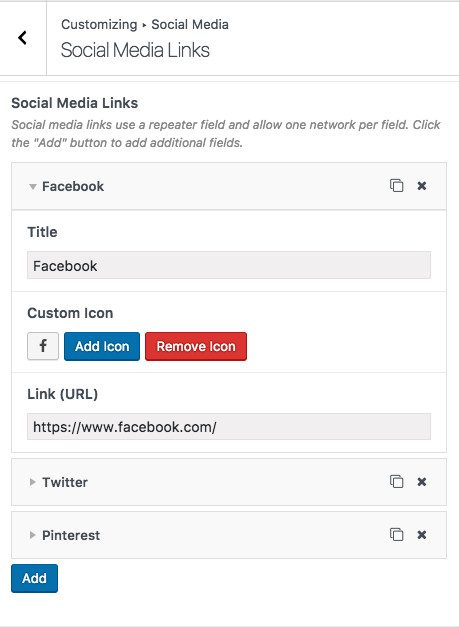

Social Share

In this section you can control all social settings of your site

Attribute Description
Social Share Use for share on each post, inlcuded: facebook, twitter, linkedin, google, tumblr, pinterest.
Social Profiles Define link social profiles, inlcuded: Dribbble, Vimeo, Github, Xing, Behance, Deviantart, SoundClound, Yelp, Rss, VK, Email, Instagram, Foursquare, Skype, Flickr, facebook, twitter, linkedin, google, tumblr, pinterest

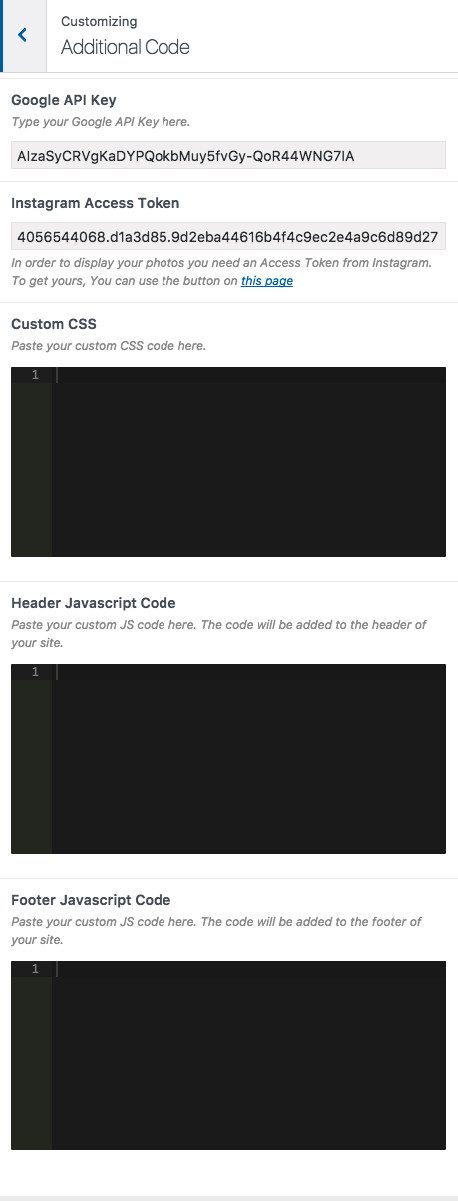

Custom Code

In this section you can custom css & javascript of your site

Attribute Description
Custom CSS Add some CSS to your theme by adding it to this text-area. Please do not include any style tags.
Custom Javascript Add some Javascript to your theme by adding it to this text-area. Please do not include any style tags.

Widgets

In this section you can do all things about widgets on your site(create, delete, update). Have 11 widget areas, included: Main Sidebar, Logo Sidebar, After Featured Area, Before Posts Area, Footer Above 1, Footer Above 2, Footer Full Width, Footer 1, Footer 2, Footer 3, Footer 4

Name Area Description
Main Sidebar Add widgets here to appear in your sidebar
Logo Sidebar Appears at the left of the logo on posts and pages.
After Featured Area Appears at the after of featured area on homepage.
Before Posts Area Appears at the before of posts area on homepage.
Footer Above 1, Footer Above 2 Appears at the top of the footer on posts and pages.
Footer Full Width Appears at the top of the footer on posts and pages.
Footer 1, Footer 1, Footer 3, Footer 4 Appears at the footer.

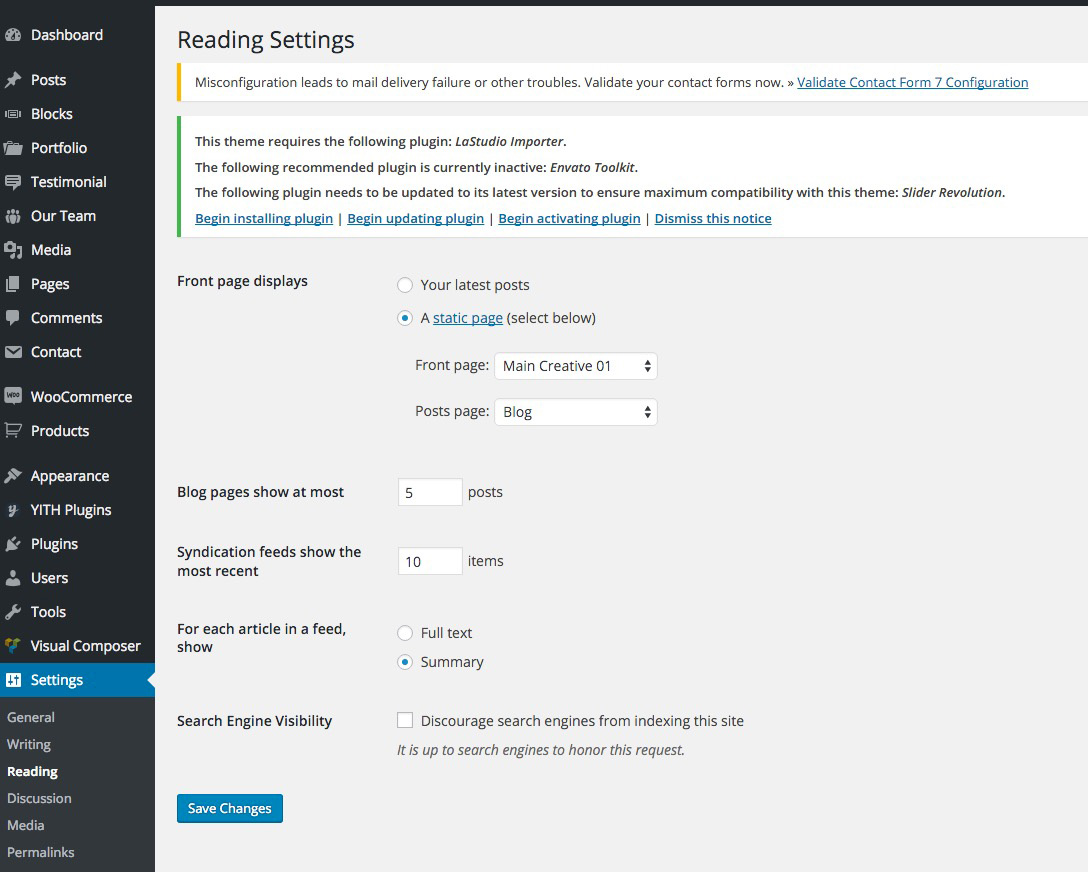

Setting a static page as Home

If you installed the Demo Content, you don’t need to choose a Home Page because my theme do it. In case you creat page manual then following these steps to set a new Page to FrontPage:

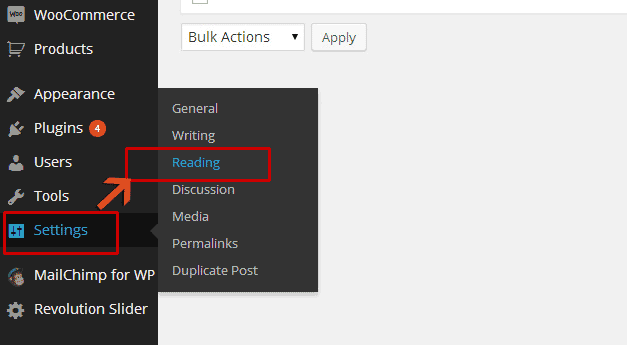

  • Go to Settings > Reading
  • For Front page displays, select A static page (select below)
  • Choose either Home 1, Home 2...ect(example) from the dropdown for Front page
  • Click Save Changes

Save all your changes!

Config row / column

Content management is a breeze with Fortuna and it requires absolutely no coding skills. Using a highly customized version of the Visual Composer plugin the theme offers a user friendly Drag'n'Drop interface for easy page creation and editing. Follow these simple steps to create a Page with Academia:

Step 1:Go to Pages > Add new in your Dashboard. Add a Title to your Page (top field).

Step 2:Switch to Backend Editor if you are currently under Classic Mode (button below Title field).

Step 3:Start adding page content by clicking on the Plus button or Add Element.

Step 4:The Add Element Popup appears, click on the first element in order to add a new Row to your page. A Row is a main building block of a page, you can split your Rows into Columns, place various elements into your rows, set Row Backgrounds, effects etc.

Step 5:Once you have the new Row added to your page you can split that Row into Columns in order to organize elements nicely in it. Once you split your Row into column you can start adding different Page Elements into your columns. If you want to edit your Row/Column Settings click on the small Pen icon (top right corner of the Row/Column). You can also Duplicate your Row with the Icon (duplicate icon) next to it or Remove the Row/Column with the icon to the right (trash bin icon).

Row Settings (General)

Click on the Edit Row button (Pen icon, top right of the Row). You will see the Row Settings Dialog popup.

Layout:

Full Width (overflow hidden) - Row will full width (option default)

Full Width (overflow visible) - Row will full width, visible content if overflow

Container - Max width 1170px and center.

Container Fluid - Full width, padding left and padding right 15px.

Columns gap:

In order to control gaps between columns navigate to row parameter window and change column gap option - the gap will be introduced between all columns within this row. Default value of gap is set to 0.

Important: In case of mobile stacking gap will be introduced between stacked columns as well.

Full Height Row and Video Background:

Equal height:

In order to set columns within row to be equal height you must navigate to row parameter window and check Equal height option to be active. All columns within this row will have equal height and align to the longest column.

Content position:

In order to control vertical alignment of content within rows/columns navigate to row parameter window and select position of content - top, middle or bottom. By default value is set to "Default" meaning it will use Top or any other alternative if defined within your WP theme.

Parallax:

Row ID

Set ID of row (Note: make sure it is unique and valid according to w3c specification)

Row Settings (Design Options)

Managing Columns

Once you have the desired number of columns in a Row you can manage each Column's individual settings by clicking on the Toolbar icons of that specific Column. The Plus Icon adds an element to the top of the Column, the bottom Plus Icon adds an elemnt to the bottom of the Column. The Trash Bin icon removes the Column. Access the Column Settings by clicking on the Pen Icon.

Column Settings (General)

Access the Column Settings by clicking on the Pen Icon. The General tab provides with the option to add CSS classes to your Column if you wish to access it via CSS (can pass more than one divided by a space).

Column Settings (Design Options)

Column Settings (Responsive Options)

Add / Edit Page Elements

Adding Page Elements to your Page is pretty straightforward. First you need to have created a new page, added a Row to it and defined your Row Columns (read more in the previous section).

Step 1:Click on one of the Plus Icons within the column you want to add a new element to.

Step 2:The Page Elements dialog will appear, click on the element you want to add to your Column/Row.

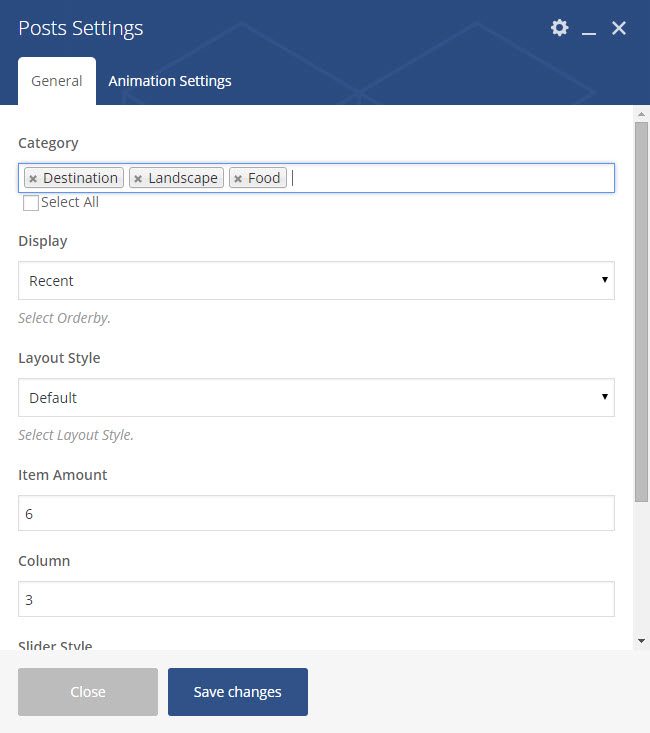

Step 3:The Element Settings Dialog of the Element you are adding appears. Customize your element anyway you want, then click Save.

Step 4:Your element is now in the Column you added it to. Once you hover your newly added element you will see a small popup that let's you manage it. You can do the following with your elements:

Move - Drag your element via the Direction Icon to move it around within the Column,Row or Page.

Edit - Click on the Pen Icon to edit your Element's properties.

Clone - Click on the Copy Icon to duplicate your Element.

Delete - Click on the Trash Bin Icon to remove your Element.

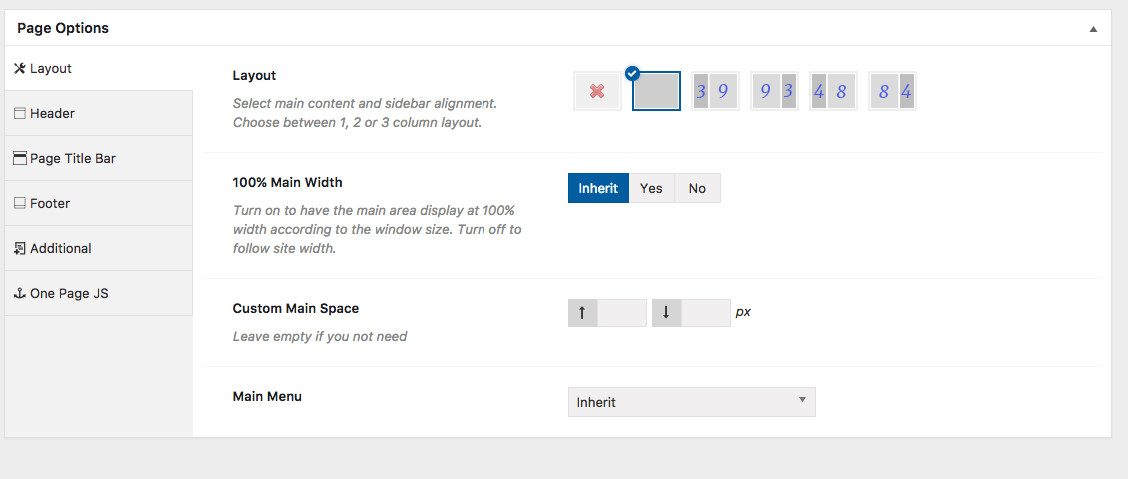

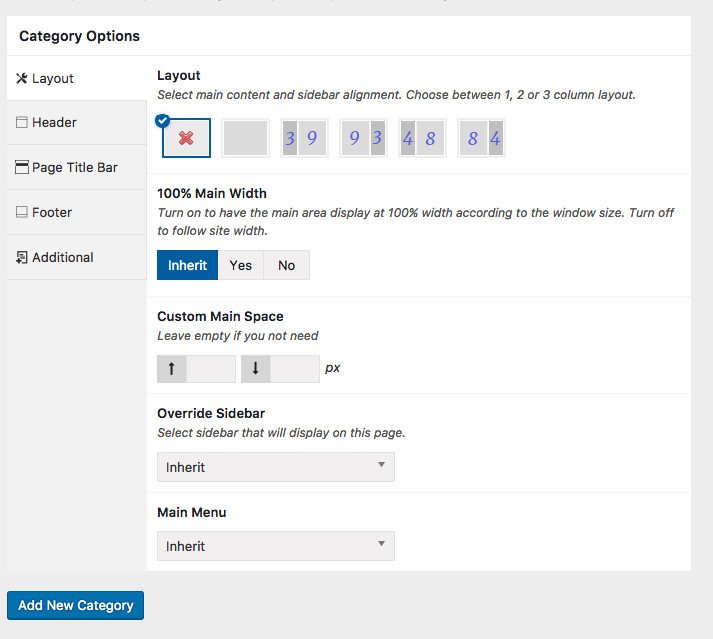

Meta Views

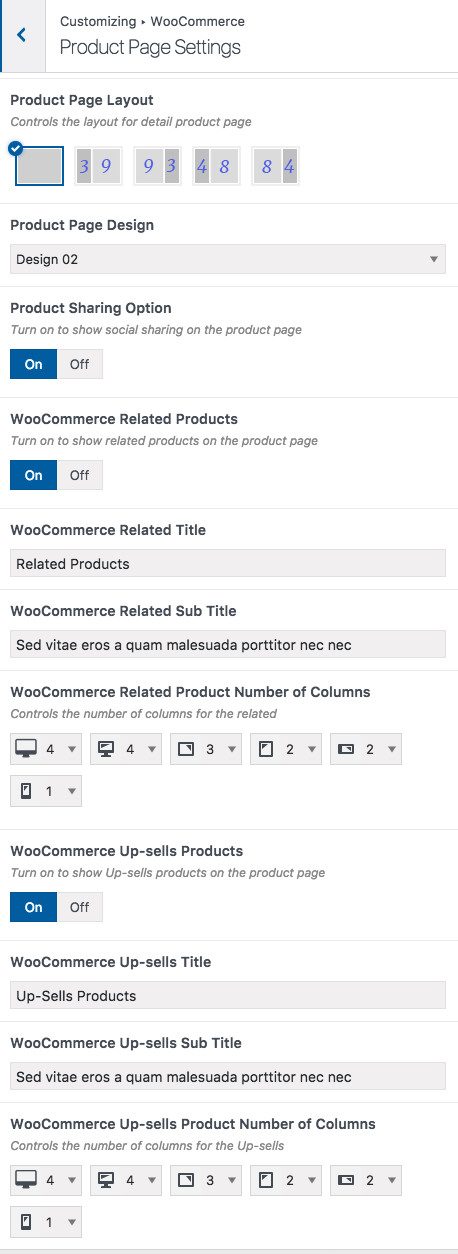

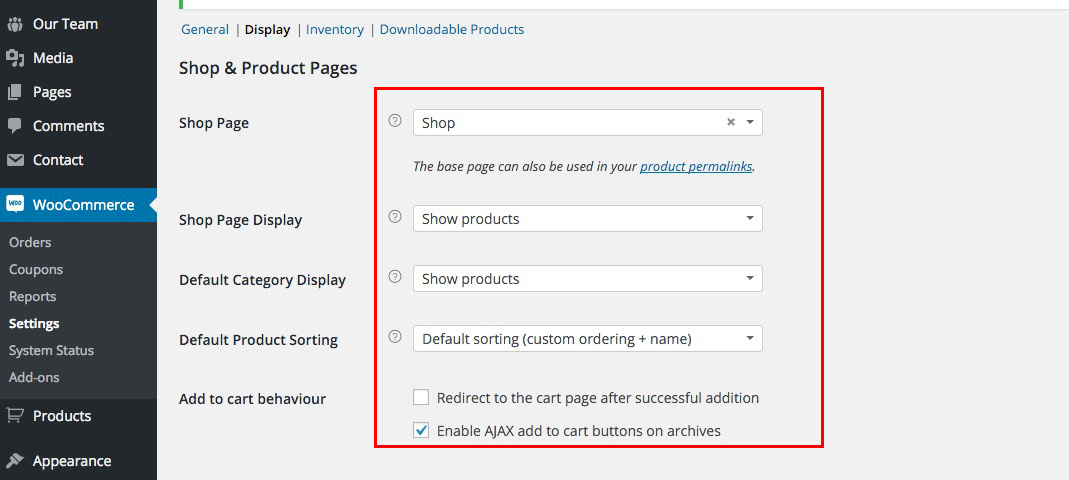

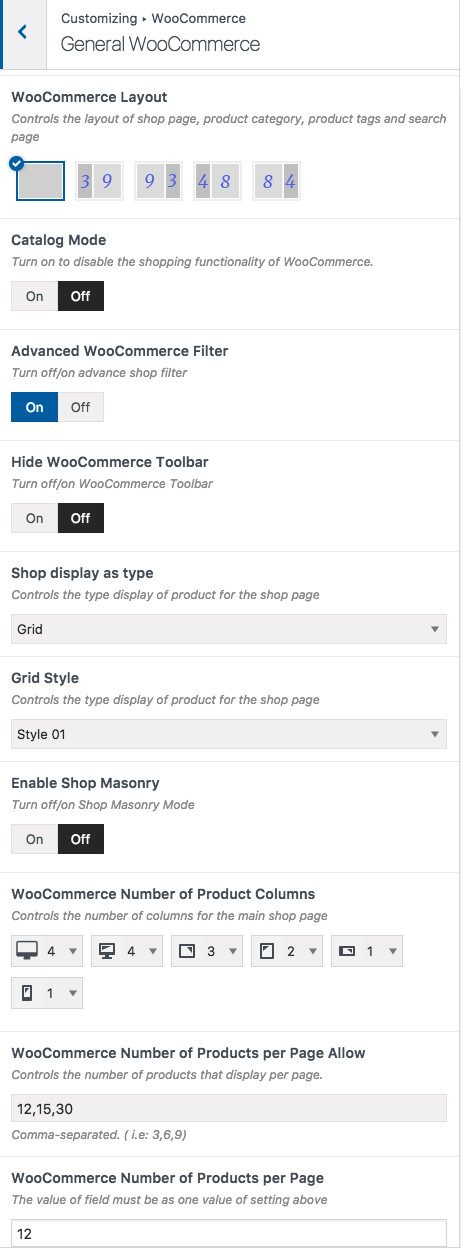

WooCommerce Settings

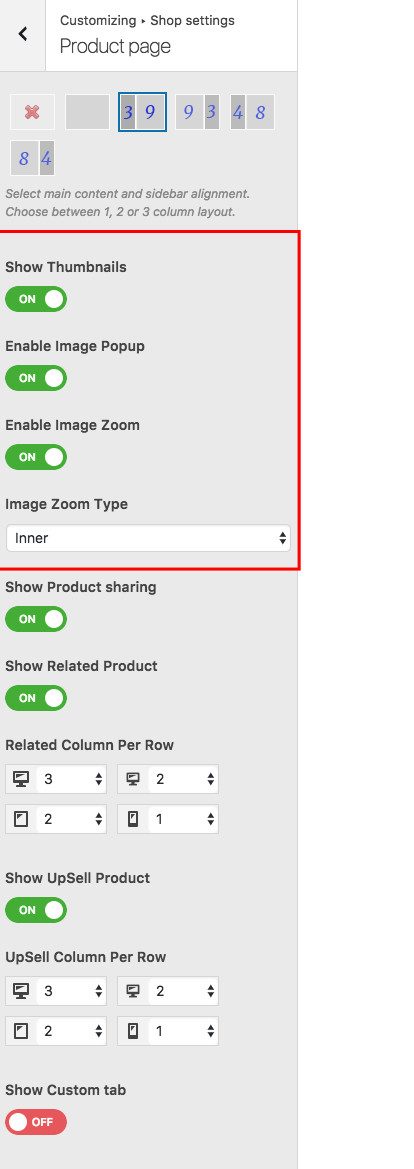

How to config product image like demo

Step 1

Step 2

Step 3
Step 4

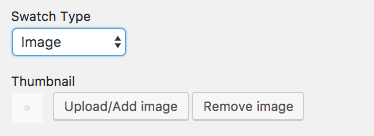

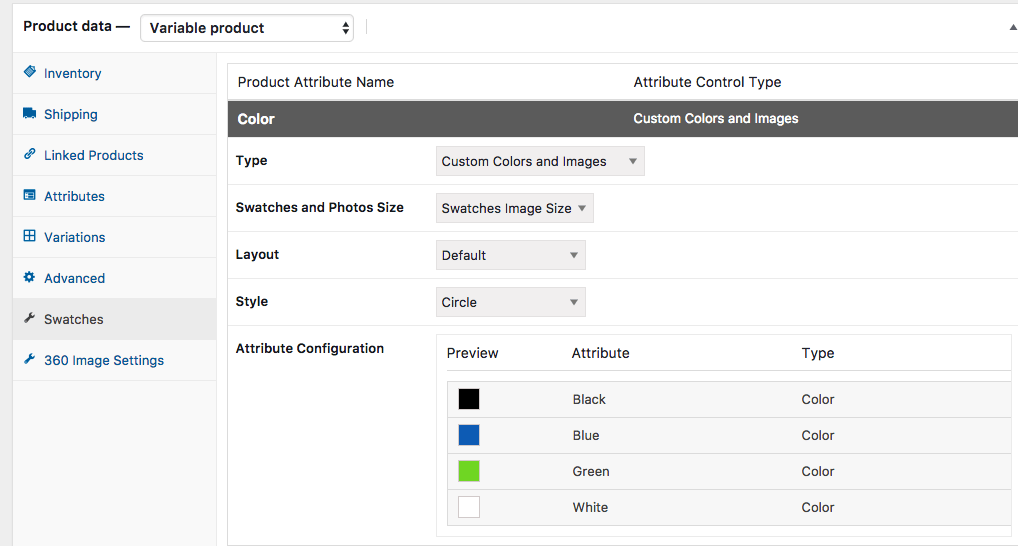

Attributes Swatches Settings

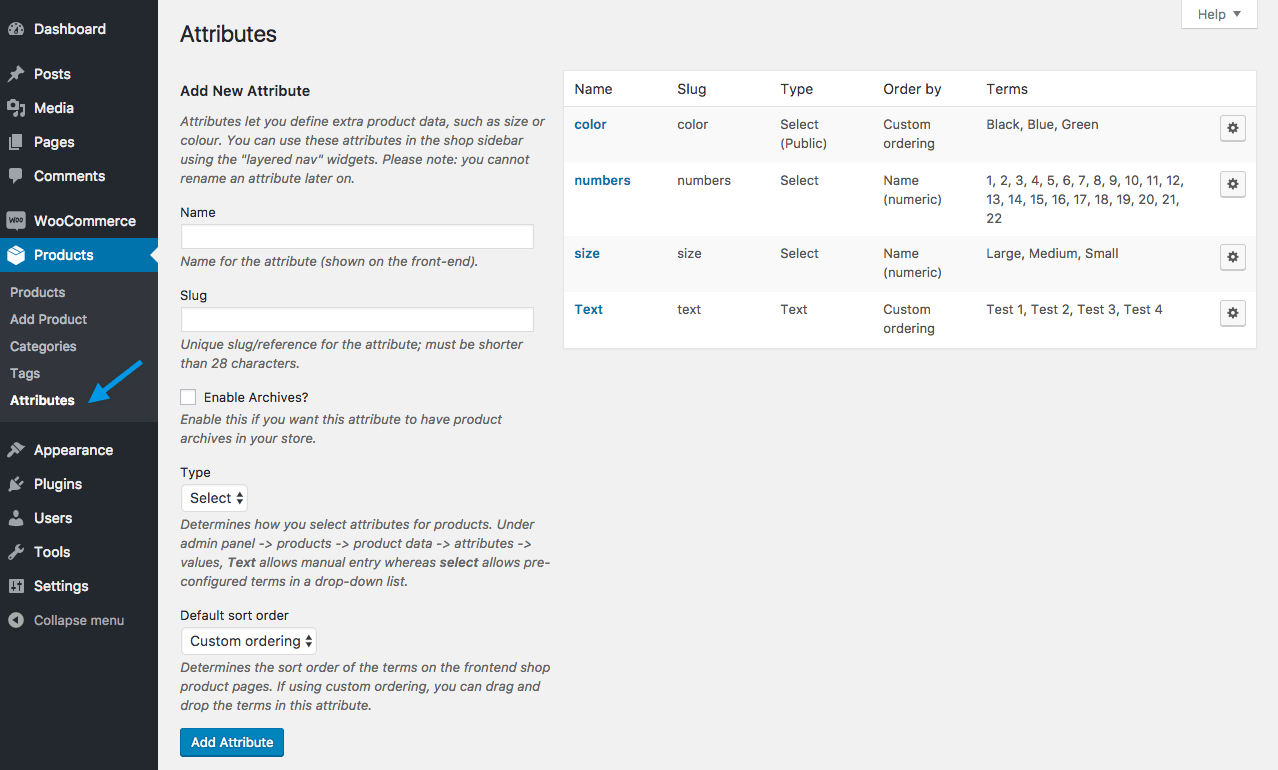

1. Go to: Products > Attributes.

2. Create a new attribute, or skip this step if you already have one.

3. Select the gear icon on the right next to the attribute. When you hover over this icon, you’ll see “Configure terms”.

4. Add New Color or whatever your attribute is called (or choose to edit an existing term).

5. Select either “Color” or “Image” in the Swatch Type dropdown.

  • If you’ve chosen color, you’ll be able to click on the color icon and select the color you want to use in the color picker. Alternatively, you can type in the HEX value for the color.
  • If you’ve chosen image, you’ll be able to upload an image.

8. Select Add New Color.

For more information about setting up and managing Global Product Attributes, see:  Managing Attributes.

Warning: If you change the attribute name and/or slug you permanently lose the swatches configuration.

Add color and image swatches to variable products

Color and photo swatches can only be used for variable products.

1. Create a variable product. Make sure that you select a global attribute or create a custom one in the “Attributes” tab. Also set up the “Variations” tab. More information about that can be found here:

2. Publish your product.

3. Go to the Swatches tab.

4. Select a “Type” for each of the attributes used for the variations.

  • None. The options will be offered in a dropdown.
  • Taxonomy Colors and Images. The options of the global attribute will be offered. (Only available for global attributes.)
  • Custom Colors and Images. You will be able to add colors and image swatches.
  • Radio Buttons. The available options will be displayed as radio buttons.

5. Choose whether to add a label or not and where to add it, if you’ve selected “Taxonomy Colors and Images” or “Custom Colors and Images”. This label will display the name of the selected term.

6. Select the size of the swatches if you’ve selected “Custom Colors and Images”. This will determine how large the swatches will be on the product page.

7. Configure the attribute terms. This is similar to how global attribute terms are configured (see above).

  • Select the term.
  • Choose Attribute Color or Image.
  • If you’ve chosen color, select a color.
  • If you’ve chosen image, upload an image.

8. Update the product.

General

Product Page

Product Image & Zoom

Cart Page

Catalog Mode

Maintaince Mode

Contact Forms Settings

Settings For Send Mail

You can visit WP Mail SMTP Plugin to further details.

Mail Chimp Settings

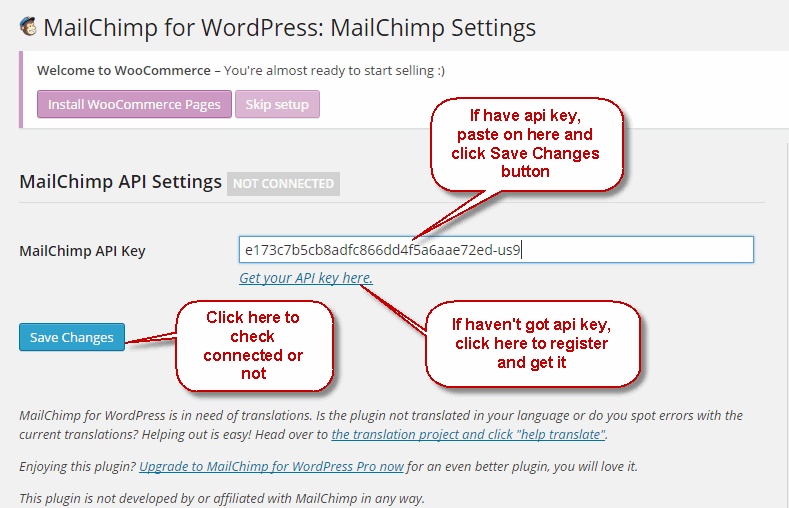

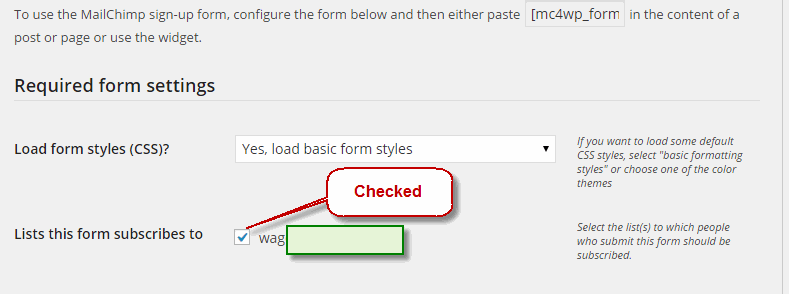

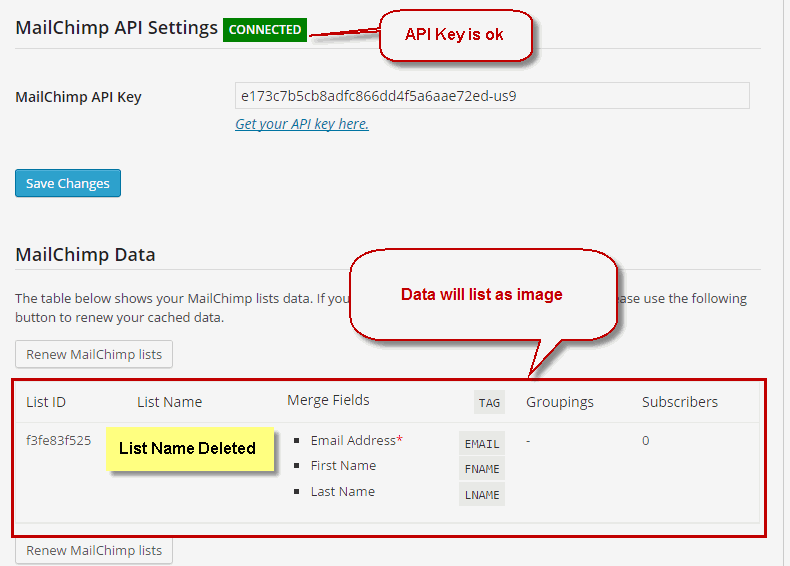

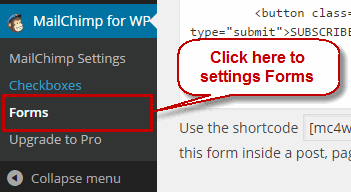

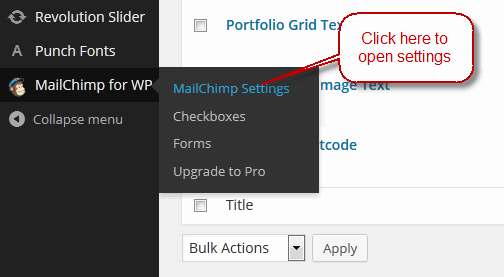

Step 1: Choose menu follow:

Step 2:

Step 3:

Step 4:

Step 5:

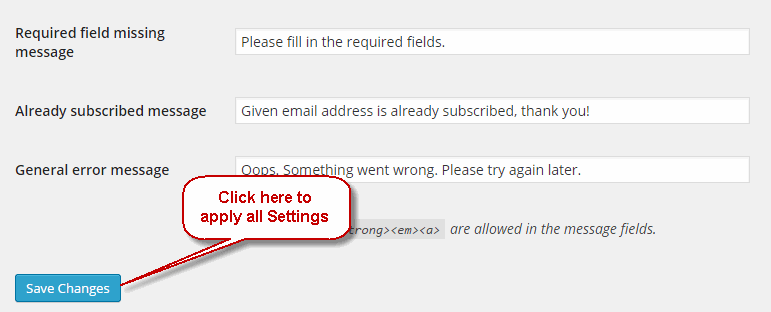

Step 6, the last:

FAQs

Q: What is post type "Custom Block" ?

A:This is post-type the theme support, You can show the block everywhere if you're using the shortcode [la_block id="{block_id}"] in which {block_id} is id of the block, you can see on below.



Q: On the each page/post/category.... I see the box Other settings -- What is this ?

A: Yes, Good question. This is advanced option which the our supported. On the each page/post/category...etc you can add more content to this page when you use the that block.
and now you can see position of the each block

Thank you for purchasing our theme

If you have any questions that are beyond the scope of this documentation

Please feel free to us via HelpDesk https://wpelite.ticksy.com/.

Thanks so much!
